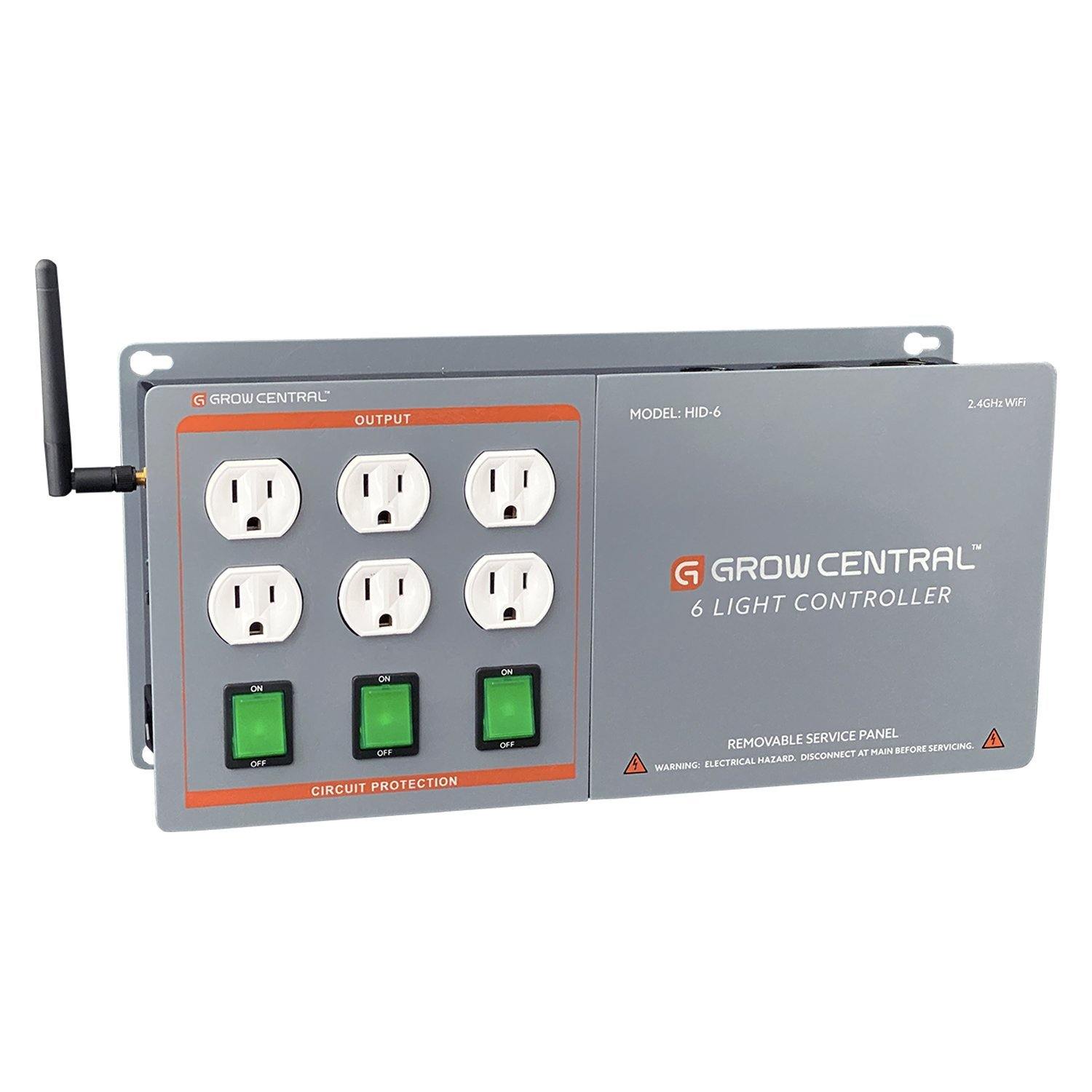

GrowCentral Power Box - HID6-120V Lighting Controller

HID6-120V:  6-OUTLET 120V LIGHTING CONTROLLER, 240V INPUT

Specifications:

Input:  208/240V Single Phase 50/60Hz, 30A Maximum (NO HIGH LEG) L1+L2+Neutral+Ground

Output:  208/240V Single Phase 50/60Hz, 60A Maximum

NEMA 5-15 Duplex Outlet Receptacles:  3 (6 outlets total)

Circuit Protection: 15A Thermal Circuit Breaker Per Outlet

Programmable Zones:  1 or 2

WiFi 2.4GHz Standard ½ wave antenna

Powder coated steel enclosure

For Indoor Use Only

Dimensions:  13.75” x 6.75” x 3.75”

Weight:  9.5 Lbs.

Shipping Dimensions:  18” x 9” x 5”

Shipping Weight:  12 Lbs.

UPC: 688907909130  (HID6-120V)

UPC: 688907909147  (HID6-120V-D)

The HID6-120V is the perfect controller for powering up your valuable LED lights, although it can also run HID’s, and any other high-amperage 120V appliances as well.   Get the power you need!  With the HID6, wiring-up six lights running at 120V has never been easier – or smarter!  As with all GC products, the first thing you will notice when you hold this controller in your hands is the impeccable build quality.  Every detail is engineered with you in mind.  And we’ve designed these units so that virtually anybody can install them.  Thanks to the removable front panel and direct-wire terminal blocks, just mount the unit where you want it, and bring the wiring straight to it.  So easy to install, you will be up-and-running in just a few minutes.  When it comes to plugging in your lights, each NEMA 5-15 outlet can deliver up to 15A of current (Maximum 60A total), and is protected by its own 15A circuit breaker, so you have enough power to fire up even the most demanding loads.  And for all of you techies out there, rejoice!  When you are on the #GCNetwork, you have unlimited flexibility in accessing your lights – any time, and from any place – all you have to do is pull out your phone to check or change your schedule!  You can create standard day & night schedules, but you can also do much more, like creating custom day and night lengths, and even seasonal lighting patterns where the day lengths mimic nature and incrementally decrease during the cycle.  And it goes without saying that nobody can afford downtime.  That’s why we’ve designed the HID6 with minimal failure points and easy-to-replace parts.  On the off chance you blow a relay, no problem - replace it in minutes without taking the unit out of service.  When you have a CS-1T or CS-2 Climate Sensor on the #GCNetwork, it adds high temperature shutoff features to all of your GrowCentral lighting controllers.  You can add phased lighting shutdown if a certain temperature threshold is exceeded to protect crops from heat damage, in the event a cooling or ventilation device fails.  This model also comes in a 2-Zone configuration (HID6-120V-D), where you can control the outlets in two separate zones, each with its own schedule.   The first zone has four outlets and the second zone has 2 outlets.  This version is great for those running smaller setups who need to control a veg and a bloom.  As you can see, there is no better controller for powering up your gear!

Add this fine piece of equipment to your grow operation today, and start reaping the benefits immediately!

Features:

-120V Single Phase lighting controller, 240V Input (NO HIGH LEG). L1+L2+Neutral+Ground

-6 NEMA 5-15R 120-Volt outlets, with a 15A circuit breaker for each outlet.

-Up to 60A maximum output at 120V.

- Access your HID6 controller from any phone, tablet, or computer via app or browser.

-Create on/off lighting schedules for veg and bloom, create custom day & night lengths, and create seasonal lighting patterns that mimic nature.

-Create lighting programs, turn lights on & off manually, get alerts, and review statistics, from any device, no matter where you happen to be.

-Easy to install and operate.  Our signature removable front cover makes installation a breeze.  Wire directly to color-coded terminal blocks, with knockouts on three sides of the chassis for flexible wire entry options.  Automate all of your lighting within minutes!

-Use with CS-1T or CS-2 Climate Sensor to provide high temp shutoff functions.

-Replaceable components mean no down time, ever.

-Optional dual zone model (HID6-120V-D), has two programmable zones (4 outlet zone, and 2 outlet zone), which allows you to run two different schedules from one controller.

-The HID6 never misses a beat.  Even if internet is down, all programs continue to execute.

-Powder coated steel enclosure built to last a lifetime with keyhole tabs for easy wall mounting.

-UL 508A Compliant. One-year manufacturer warranty.

-Requires router with WPS, GrowCentral Account, and Internet access.

-Proudly designed and made in the USA by master growers (who also happen to be tech geeks!!), with three decades of experience in the industry – undisputedly the best controllers money can buy!

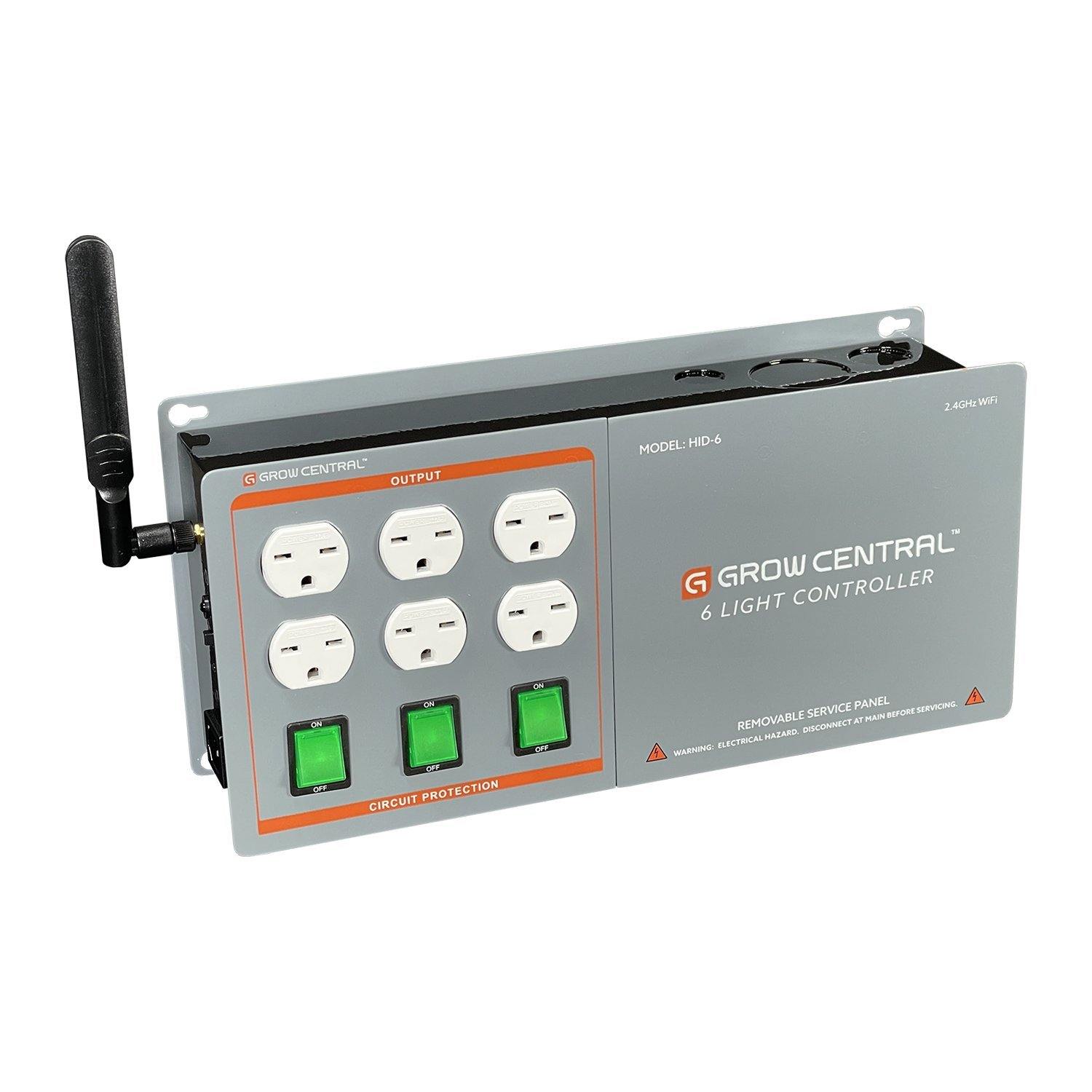

HID6-240V:  6-OUTLET 240V LIGHTING CONTROLLER

Specifications:

Input:  208/240V Single Phase 50/60Hz, 40A Maximum (High Leg OK) L1+L2+Neutral+Ground

Output:  208/240V Single Phase 50/60Hz, 40A Maximum

NEMA 6-15 Duplex Outlet Receptacles:  3 (6 outlets total)

Circuit Protection: 15A Thermal Circuit Breaker Per Duplex Outlet

Programmable Zones:  1 or 2

WiFi 2.4GHz Standard ½ wave antenna

Powder coated steel enclosure

For Indoor Use Only

Dimensions:  13.75” x 6.75” x 3.75”

Weight:  9.5 Lbs.

Shipping Dimensions:  18” x 9” x 5”

Shipping Weight:  12 Lbs.

UPC: 688907909116  (HID6-240V)

UPC: 688907909123  (HID6-240V-D)

Our six-outlet controllers are always some of the most popular, due to the many configurations they come in, and with the HID6, wiring-up six lights has never been easier – or smarter!  The first thing you will notice when you hold this controller in your hands is the impeccable build quality.  Every detail is engineered with you in mind.  Plus, we’ve designed these units so that virtually anybody can install them.  Thanks to the removable front panel and direct-wire terminal blocks, just mount the unit where you want it, and bring the wiring straight to it.  So easy to install, you will be up-and-running in just a few minutes.

When it comes to plugging in your lights, each NEMA 6-15 outlet pair can deliver up to 15A of current, and is protected by its own 15A circuit breaker, so you have enough power to fire up even the most demanding loads.  And for all of you techies out there, rejoice!  When you are on the #GCNetwork, you have unlimited flexibility in accessing your lighting controller – any time, and from any place.  You could be mountain biking in Moab – all you have to do is pull out your phone and flip from veg to bloom!  You can create standard day & night schedules, but you can also do much more.  Create custom day and night lengths, and even create seasonal lighting patterns where the day lengths mimic nature and incrementally decrease during the cycle.

And it goes without saying that nobody can afford downtime.  That’s why we’ve designed the HID-6 with minimal failure points and easy-to-replace parts.  On the off chance you blow a relay, no problem - replace it in minutes without taking the unit out of service.  When you have a CS1T or CS2 Climate Sensor, it adds high temperature shutoff features to all of your GrowCentral lighting controllers, if a certain temperature threshold is exceeded.  This model also comes in a 2-Zone configuration (HID6-240V-D), where you can control your lights in two separate zones, each with its own schedule.   The first zone has four outlets and the second zone has 2 outlets.  This version is great for those running smaller setups that need to control a veg and a bloom.  As you can see, there is no better controller for powering up your lights!

Add this fine piece of equipment to your grow operation today, and start reaping the benefits immediately!

Features:

-240V Single Phase lighting controller (high leg ok). L1+L2+Neutral+Ground

-6 NEMA 6-15R 240-Volt outlets, with a 15A circuit breaker for each outlet pair.

-Up to 40A maximum output.

- Access your HID-6 controller from any phone, tablet, or computer via app or browser.

-Create on/off lighting schedules for veg and bloom, create custom day & night lengths, and create seasonal lighting patterns that mimic nature.

-Create lighting programs, turn lights on & off manually, get alerts, and review statistics, from any device, no matter where you happen to be.

-Easy to install and operate.  Our signature removable front cover makes installation a breeze.  Wire directly to color-coded terminal blocks, with knockouts on three sides of the chassis for flexible wire entry options.  Automate all of your lighting within minutes!

-Use with CS1T or CS2 Climate Sensor to provide high temp shutoff functions.

-Replaceable components mean no down time, ever.

-Optional dual zone model (HID6-240V-D), has two programmable zones (4 outlet zone, and 2 outlet zone), which allows you to run two different schedules from one controller.

-The HID-6 never misses a beat.  Even if internet is down, all programs continue to execute.

-Powder coated steel enclosure built to last a lifetime with keyhole tabs for easy wall mounting.

-UL 508A Compliant. One-year manufacturer warranty.

-Requires Internet Router with WPS, GrowCentral Account, and Internet access.

-Proudly designed and made in the USA by master growers (who also happen to be tech geeks!!), with three decades of experience in the industry – undisputedly the best controllers money can buy!



HID6-COMBO:  6-OUTLET 120V and 240V LIGHTING CONTROLLER

Specifications:

Input:  208/240V Single Phase 50/60Hz, 40A Maximum (NO HIGH LEG) L1+L2+Neutral+Ground

Output:  120V Single Phase 50/60Hz, 30A Max and 208/240V Single Phase 50/60Hz, 25A Max

NEMA 5-15 Duplex Outlet Receptacles:  1 (2 outlets total)

NEMA 6-15 Duplex Outlet Receptacles:  2 (4 outlets total)

Circuit Protection: 15A Thermal Circuit Breaker Per Outlet

Programmable Zones:  2

WiFi 2.4GHz Standard ½ wave antenna

Powder coated steel enclosure

For Indoor Use Only

Dimensions:  13.75” x 6.75” x 3.75”

Weight:  9.5 Lbs.

Shipping Dimensions:  18” x 9” x 5”

Shipping Weight:  12 Lbs.

UPC: 688907909154  (HID6-COMBO)

The HID6-COMBO is a versatile controller that gives you 120V and 240V outlets in one package, with plenty of power output to satisfy your needs.  Each bank of outlets is independently programmable, so it’s like having two controllers in one.  This is an excellent controller for the home grower.  As with all GC products, the first thing you will notice when you hold this controller in your hands is the impeccable build quality.  Every detail is engineered with you in mind.  And we’ve designed these units so that virtually anybody can install them.  Thanks to the removable front panel and direct-wire terminal blocks, just mount the unit where you want it, and bring the wiring straight to it.  So easy to install, you will be up-and-running in just a few minutes.  This controller is so flexible and has so many different uses, it would be impossible to list them all.  And for all of you techies out there, rejoice!  When you are on the #GCNetwork, you have unlimited flexibility in accessing your lights – any time, and from any place.  You could be on a cruising the Caymans – all you have to do is pull out your phone to revise your schedule!  You can create standard day & night schedules, but you can also do much more, like creating custom day and night lengths, and even seasonal lighting patterns where the day lengths mimic nature and incrementally decrease during the cycle.  And it goes without saying that nobody can afford downtime.  That’s why we’ve designed the HID6 with minimal failure points and easy-to-replace parts.  On the off chance you blow a relay, no problem - replace it in minutes without taking the unit out of service.  When you have a CS-1T or CS-2 Climate Sensor on the #GCNetwork, it adds high temperature shutoff features to all of your GrowCentral lighting controllers.  You can add phased lighting shutdown if a certain temperature threshold is exceeded to protect crops from heat damage, in the event a cooling or ventilation device fails.  As you can see, there is no better controller for powering up your lights!

Add this fine piece of equipment to your grow operation today, and start reaping the benefits immediately!

Features:

-120V and 240V Single Phase lighting controller, 240V Input (NO HIGH LEG). L1+L2+Neutral+Ground

-2 NEMA 5-15R 120-Volt outlets, with a 15A circuit breaker for each outlet.

-4 NEMA 6-15R 240V outlets, with a 15A circuit breaker for each outlet pair.

- Access your HID6 controller from any phone, tablet, or computer via app or browser.

-Create on/off lighting schedules for veg and bloom, create custom day & night lengths, and create seasonal lighting patterns that mimic nature.

-Create lighting programs, turn lights on & off manually, get alerts, and review statistics, from any device, no matter where you happen to be.

-Easy to install and operate.  Our signature removable front cover makes installation a breeze.  Wire directly to color-coded terminal blocks, with knockouts on three sides of the chassis for flexible wire entry options.  Automate all of your lighting within minutes!

-Use with CS-1T or CS-2 Climate Sensor to provide high temp shutoff functions.

-Replaceable components mean no down time, ever.

-The HID6 never misses a beat.  Even if internet is down, all programs continue to execute.

-Powder coated steel enclosure built to last a lifetime with keyhole tabs for easy wall mounting.

-UL 508A Compliant. One-year manufacturer warranty.

-Requires router with WPS, GrowCentral Account, and Internet access.

-Proudly designed and made in the USA by master growers (who also happen to be tech geeks!!), with three decades of experience in the industry – undisputedly the best controllers money can buy!

Run it like pro – even when you’re not there.  Join the #GCNetwork today and enjoy full access and control!
